Discover HeatXcel
Shell & Tube Exchanger
✔ ASME Section VIII Div. 1 Code Construction
✔ TEMA Configurations: BEM, BEU, AES, BKU
✔ Materials: Carbon Steel, SS304, SS316
✔ Applications: Amine Treating, TEG Dehydration, Steam Condensing
✔ Configurations: Fixed Tube Sheet, U-Tube, Floating Head
✔ Pressure Range: 50 to 1500 psig
✔ Temperature Range: -29°C to 400°C
Tube-in-Tube Heat Exchanger
✔ Compact double-pipe design for viscous or two-phase flow
✔ Straight or coiled geometry available
✔ Ideal for jacketed service or high fouling duty
✔ Materials: CS, SS304, SS316
✔ ASME Section VIII Div. 1 Construction
✔ Used in gas cooling, condensate systems, lube oil heating
Electric Heat Exchanger
✔ Integrated electric heating elements with ASME shell
✔ Custom wattage and temperature control options
✔ Suitable for water, glycol, oil, gas, or instrument air
✔ Thermocouple and control box options available
✔ Materials: Carbon Steel, SS304, SS316
✔ Ideal for winterization, freeze protection, off-grid systems

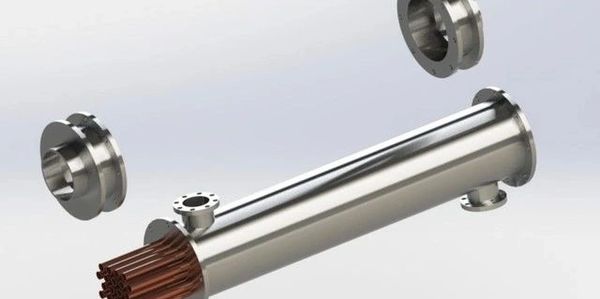

U-Tube Bundles
✔ Built to match existing shell diameter and layout
✔ Quick turnaround for emergency shutdowns or planned outages
✔ Available in CS, SS304, SS316, Copper, Cu-Ni
✔ Supports NACE service and custom material upgrades
✔ Standard TEMA designs for easy replacement
✔ Compatible with most OEM exchanger shells
Experience the Fabrication Quality
Key Features
✔ ASME Section VIII Div. 1 Code Construction
✔ TEMA Configurations: BEM, BEU, AES, BKU, and more
✔ Construction Options: Welded or Welded + Expanded
✔ CRN Registration Available (Canada)
✔ Built for Sour, Clean, Dirty, and NACE Applications
✔ Optimized for both Liquid and Vapor Phase Systems
Heat Exchanger for Everyone
✔ Design Pressure: 50 to 1500 psig (per ASME Section VIII Div. 1)
✔ Design Temperature: -29°C to 400°C (up to 500°C with upgrades)
✔ Design Code: ASME Section VIII Div. 1 + TEMA (BEM, BEU, AES)
✔ Materials: Carbon Steel, SS304, SS316
✔ Tubesheet Construction: Welded, Expanded, or Welded + Expanded
